F- tone公司专业研发制造10G SFP+有源光缆、10G SFP+ AOC、10G SFP+ Active Optical Cable
。遵 从的标准： SFF-8431 SFP+ Multi‐Source Agreement 10Gb/s SFP+ 有源光缆传输距离抵达300米（OM3万兆多模） 光口不过露，具有极高的可靠性 低本钱优势 低功耗小于0.9W(每端) F-tone公司提供300米以内的长度定制化的选择
。100%完美兼容全系列品牌效劳器,交换机,路由器,PDH/SDH传输设备,EPON,GPON,10G EPON,10G GPON,WDM PON基站等等全系列设备

Features

¨         Electrical interface compliant to SFF-8431

¨         Hot Pluggable

¨         850nm VCSEL transmitter, PIN photo-detector receiver

¨         Up to 300m on OM3 MMF

¨         Operating case temperature: 0 to 70℃

¨         All-metal housing for superior EMI performance

¨         RoHS compliant (lead free)

Applications

¨         10 Gigabit Ethernet

¨         4G and 8G Fibre Channel Applications

¨         1x InfiniBand QDR. DDR, SDR

¨         High-performance computing clusters

¨         Servers, switches, storage and host card adapters

Description

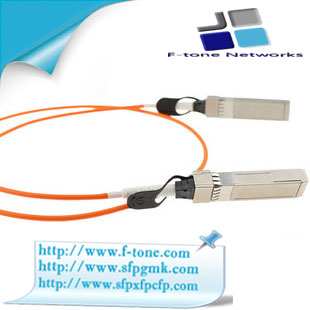

F-tone SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. F-tone SFP+ Active Optical Cables’s length is up to 300 meters on OM3 MMF.

SFP+ AOC Specifications

Optical characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Note:

1. Trade-offs are available between spectral width, center wavelength and minimum OMA, as shown in table 6.

2. The optical power is launched into MMF

3. Measured with a PRBS 2³¹-1 test pattern @10.3125Gbps

4.Measured with a PRBS 2³¹-1 test pattern @10.3125Gbps,BER≤10^-12.

Ordering information
